power2max NG Easton Road Power MeterJune 7, 2023
power2max’s premier NG power for your Easton crankset!

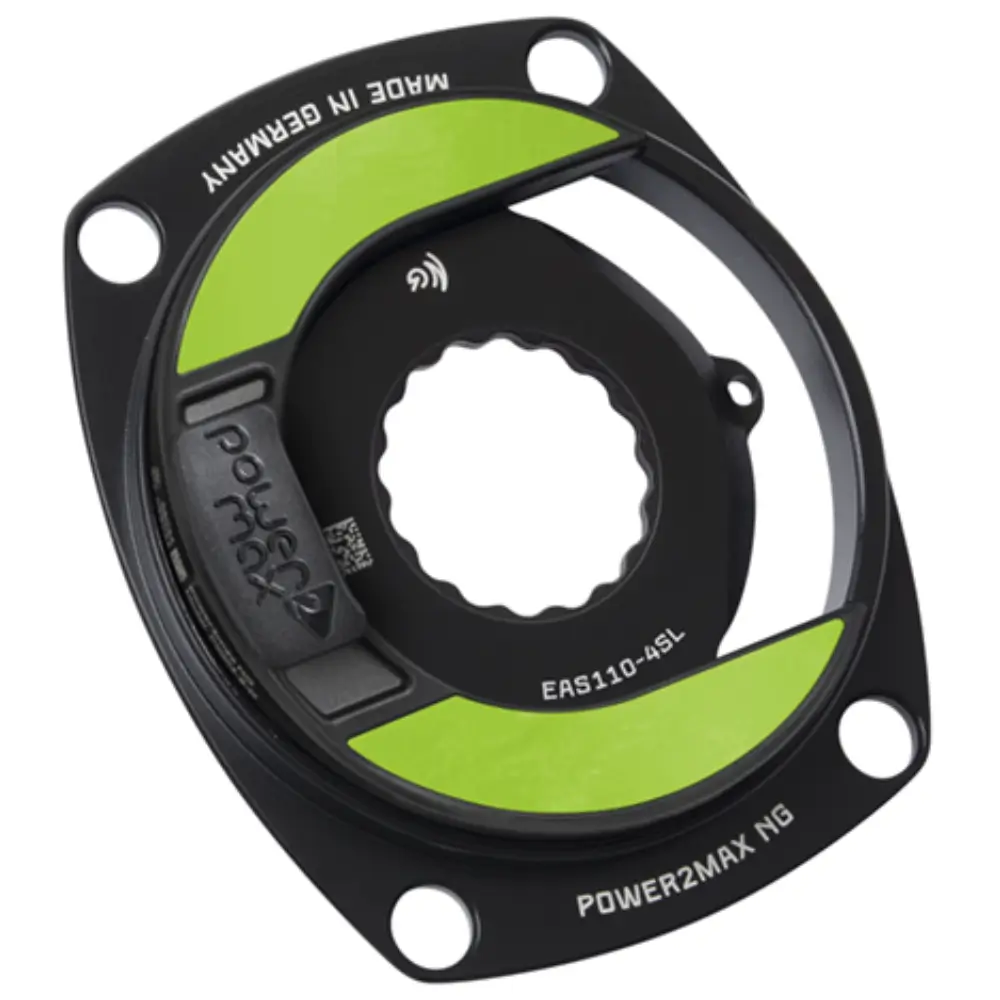

power2max NG Easton Road Power Meter
The NG is the premier model in the power2max line-up. With features such as dual leg power measurement, ANT+/Bluetooth SMART compatibility and left/right power balance, the power2max NG Easton Road Power Meter comes fully-loaded. In addition, the NG is accurate to +/- 1.0% and is easy to use with features such as auto-zero and accelerometer-based cadence measurement. The power2max NG model also features a rechargeable battery with 150 hours of run time as well as a full 5-year warranty!
NG vs. NGeco
This upgraded NG version has the following features vs. the base model NGeco:
- Better accuracy (+/- 1.0% vs. +/- 2.0%)
- Rechargeable battery
- Longer 5-year warranty
- Additional training metrics including left/right power balance
Key Product Details
This power meter is compatible with Easton EA90 aluminum and Easton EC90 SL carbon cranksets. Regarding chainrings, it is compatible with 110 BCD 5-bolt, 130 BCD 5-Bolt and 110 BCD 4-bolt chainrings based on the version ordered. See Compatibility tab for more information.
The power2max power meter measures power at the spider and is therefore able to measure power from both legs. This NG version is also able to measure your left vs. right leg power balance.
Dual-leg power measurement, accurate to +/- 1.0%, 150 hours of battery life, rechargeable battery, left/right power balance, ANT+ and Bluetooth compatibility, auto-zero (automatic calibration), 5-year warranty. See Specs tab for more information.
Advice From Our Staff:
This is a great way to add power to an Easton crankset. It measures power from both legs, is accurate and very reliable. We believe the price also represents a good value for what you get (even for this more expensive NG version). We highly recommend power2max power meters and use them on many of our own bikes.
Options For This Power Meter
BCD: This power meter is available in the following BCDs in order to fit your choice of chainring sizes:
- 110 5-Bolt | 130 5-Bolt | 110 4-Bolt
Other Options to Consider
NGeco Version: While the NG version you are viewing here features slightly better accuracy, a rechargeable battery, a longer warranty and some additional training metrics, we also sell the more affordable power2max NGeco Easton Road Power Meter version.
Cranksets: The power2max NG Easton Road Power Meter is compatible with the Easton EA90 aluminum or Easton EC90 SL carbon crankset.
Chainrings: This power meter is compatible with 110 BCD 5-bolt, 130 BCD 5-bolt or 110 BCD 4-bolt chainrings based on the version ordered. In many cases, you can use your existing chainrings assuming they use the same configuration as the power meter you order.
Please note, the 110 BCD 4-Bolt version is compatible with all Shimano 4-bolt chainrings, including Ultegra 8100 and DURA-ACE 9200 chainrings.
Please also note, the smallest chainring that will fit this power meter is 34T (for example, 50/34). A 48/32 chainring combination for example would not work.
What is BCD?: BCD (bolt circle diameter) is simply the diameter of a circle that passes through the centers of the bolt holes in your chainring. The BCD is usually stamped right on the chainring as either 110 or 130. It is important to know what BCD your crankset is because assuming you want to use your existing chainrings on your new power meter, you need to order the correct BCD.
power2max NG Easton Road Specs
|Name||NG Easton Road|
|Location of Power Measurement||Spider|
|Left or Both Legs Measured||Both|
|Independent Left/Right Measurement||Yes - Power Balance|
|Installation||More involved (60 min. estimated)|
|Communication Protocol||ANT+ and Bluetooth SMART|
|Claimed Accuracy||+/- 1.0%|
|Weight||146/158 grams (110/130 BCD)|
|Battery Life||150 hours|
|Method of Cadence Measurement||Accelerometer|
In the Box
- power2max power meter
- Charging cable
- User's manual
Tools Needed for Installation
You will need the following tools for installation of this product. You can purchase many of these commonly used tools in our store.
- Race Face CINCH lock ring tool
- 10 mm Allen key
