Home » XCADEY XPOWER-S Power Meters » XCADEY XPOWER-S GEN2 ROTOR ALDHU Carbon Road Power Meter Crankset

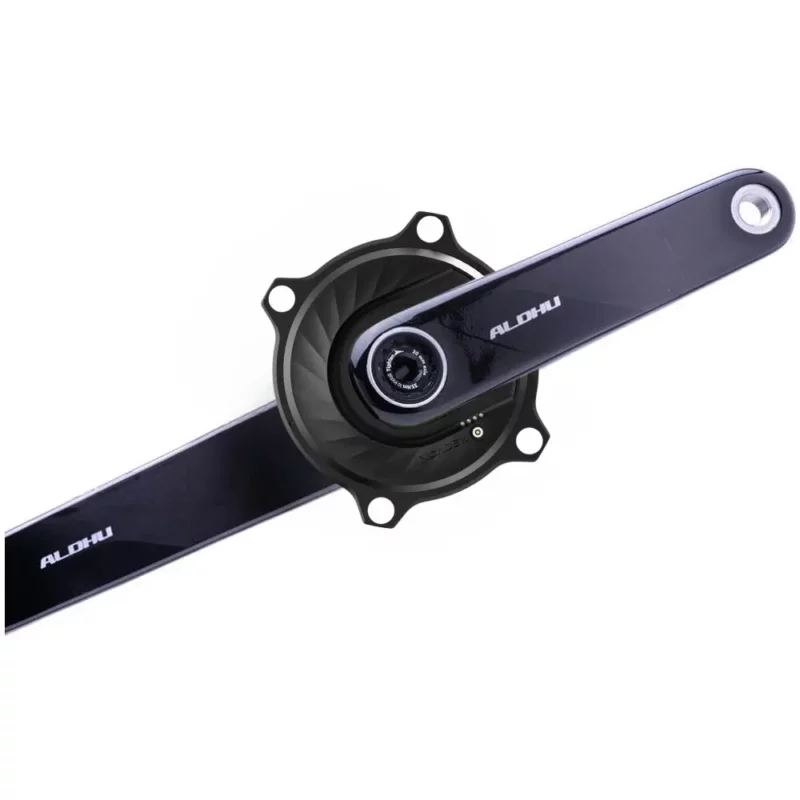

A XCADEY XPOWER-S GEN2 ROTOR ALDHU Carbon Road Power Meter Crankset against a white background.

XCADEY XPOWER-S GEN2 ROTOR ALDHU Carbon Road Power Meter Crankset

Niel Ubod April 12, 2024

$730.00 – $750.00

Affordable, dual-sided, carbon power meter crankset!
Clear selection

XCADEY XPOWER-S GEN2 ROTOR ALDHU Carbon Road Power Meter Crankset

The XCADEY XPOWER-S GEN2 ROTOR ALDHU Carbon Road Power Meter Crankset combines the XCADEY spider with the ultra-light ALDHU Carbon crankset. This XCADEY crankset measures power from both legs and is accurate to +/- 1.0%. The ALDHU Carbon Crankset weighs 100 grams less than the ALDHU aluminum model. In addition, it has increased vertical and horizontal stiffness by 11% and 36%, respectively. The power meter also features a rechargeable battery with 150 hours of ride time, active temperature compensation, and left and right leg power balance.



Key Product Details

Compatibility:

This power meter fits 30 MM bottom brackets and 110 BCD 4-bolt chainrings. See Compatibility tab for more information.

Power Measurement:

The XCADEY power meter measures power at the spider and is therefore able to measure power from both legs.

Key Features:

Dual-leg power measurement, lightweight carbon fiber crankset, accurate to +/- 1.0%, 150 hours of battery life, rechargeable battery, very lightweight, left/right power balance, ANT+ and Bluetooth compatibility, active temperature compensation. See Specs tab for more information.

Advice From Our Staff:

The XCADEY ROTOR ALDHU Carbon Road Power Meter Crankset is a more expensive power meter crankset because of the carbon crank arms, however you get dual-sided power and very light and stiff carbon fiber crank arms. We recommend this crankset to riders when it fits within their budget.



Options For This Power Meter

BCD: This power meter is available in the following BCDs in order to fit your choice of chainring sizes:

  • 110 4-Bolt

Crank arms: The ROTOR ALHDU Carbon arms use a 30 mm spindle and are available in the following sizes:

  • 155 mm | 165 mm | 170 mm | 172.5 mm | 175 mm



Professional Assembly (Optional)

We are happy to professionally assemble your power meter crankset if you select this option when ordering. This ensures your crankset is correctly built and saves you time. Professional assembly includes:

  • Mount the power meter to the cranks and tighten to factory specifications
  • Apply multi-purpose bicycle grease where necessary
  • Install chainrings on the power meter (if chainrings are ordered)

Please note – while we tighten everything to factory specs, it is still your responsibility to routinely check your power meter crankset to make sure all bolts and nuts remain securely fastened.



Other Versions to Consider

XCADEY ROTOR Aluminum Version: We also have the XCADEY XPOWER-S GEN2 ROTOR ALDHU Road Power Meter Crankset which uses ROTOR aluminum crank arms. This version is more affordable, but the aluminum crank arms are a bit heavier. ROTOR’s aluminum crank arms however are available in both 24 mm and 30 mm spindle sizes.

Compatibility

Chainrings: The power fits 110 BCD 4-bolt chainrings. In many cases, you can use your existing chainrings assuming they use the same configuration as the power meter you order.

Bottom Bracket: This power meter fits 30 MM bottom brackets. If you currently have a 30 MM crankset on your bike, you should be able to re-use your existing bottom bracket. However, if you are changing spindle sizes, you will need to replace your bottom bracket.

XCADEY ROTOR ALDHU Carbon Crankset Specs

NameXCADEY ROTOR ALDHU Crankset
Bike TypeRoad
Location of Power MeasurementSpider
Left or Both Legs MeasuredBoth
Independent Left/Right MeasurementYes - Power Balance
InstallationMore involved (60 min. estimated)
Crank Arm MaterialCarbon Fiber
Communication ProtocolANT+ and Bluetooth SMART
Claimed Accuracy+/- 1.0%
Active Temperature CompensationYes
Weight466 grams
Battery TypeRechargeable
Battery Life150 hours
Method of Cadence MeasurementAccelerometer
BCD110 4-bolt
Spindle Size30 mm
Q Factor147.5 mm
Warranty2 years

In the Box

  • XCADEY power meter
  • ROTOR ALDHU Carbon crank arms and spindle
  • Charging cable
  • User's manual

Tools Needed for Installation

You will need the following tools for installation of this product. You can purchase many of these commonly used tools in our store.

  • 10 mm Allen key

Common Questions and Answers

Question: Does the XCADEY ROTOR ALDHU Carbon Road Power Meter Crankset come in a 24 mm version?

Question: Is the XCADEY 110 BCD 4-bolt compatible with Shimano 12-speed chainrings?

  • Yes, you can install Shimano 12-speed chainrings on this power meter.

Question: How do I determine what length my current cranks are so I can make sure I get the same size?

  • Your crank arm length should be printed or stamped on the inside of the left crank arm, usually near the pedal end.

End of crank arm showing crank arm length
