Can I use this power2max Gravel power meter on a Shimano road drivetrain?

Name: power2max NGeco Praxis Zayante Carbon Gravel Power Meter Crankset
SKU: 108684
Availability: InStock

Great question! This power2max Gravel power meter features a GRX 47 mm chainline. This is wider than the 44 mm chainlines used on Shimano road drivetrains such as 105, Ultegra and DURA-ACE. However, the chainline on this gravel crankset can be converted to the narrower 44 mm road chainline by use of a power2max MTB Adapter Plate. The adapter plate is placed between the power meter and the gravel chainring, which moves the chainring closer to the bike and gives you a Shimano road chainline.

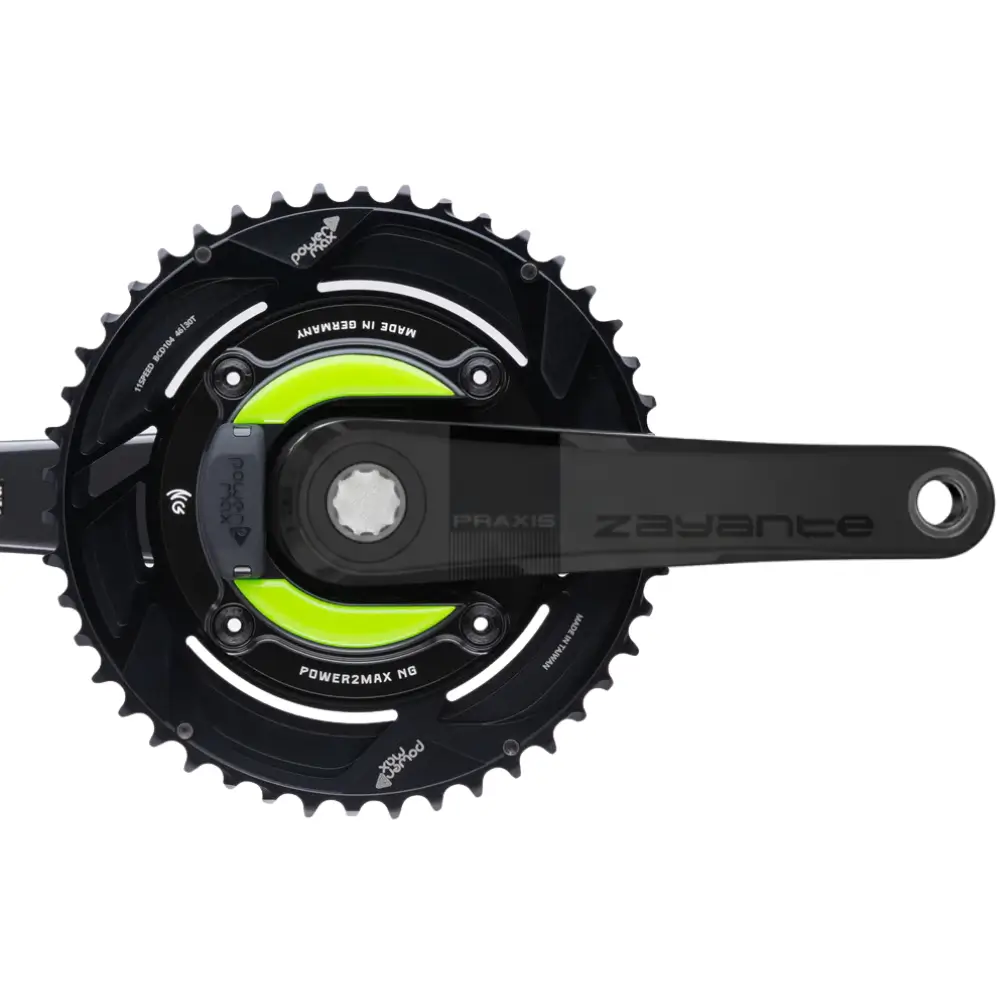

power2max NGeco Praxis Zayante Carbon Gravel Power Meter Crankset

The NGeco is the newest model in the power2max line-up. With features such as dual leg power measurement, ANT+/Bluetooth SMART compatibility and left/right power balance, the power2max NGeco Praxis Zayante Carbon Gravel Power Meter Crankset comes fully-loaded. The NGeco is accurate to +/- 2.0% in all environmental conditions and is easy to use with features such as auto-zero and accelerometer-based cadence measurement. In addition, the Zayante is a carbon crankset that is lightweight, stiff and looks good too!

Key Product Details

Compatibility:

This power meter fits Praxis M30 (30 mm/28 mm) bottom brackets. It comes with power2max gravel chainrings and features a GRX 47 mm chainline. The power meter gives you a narrow road Q factor vs. the slightly wider Q factor inherent in GRX cranks. See Compatibility tab for more information.

Power Measurement:

The power2max power meter measures power at the spider and is therefore able to measure power from both legs.

Key Features:

Dual-leg power measurement, carbon fiber crank arms, accurate to +/- 2.0%, 300-400 hours of battery life, CR2450 user-replaceable battery, left/right power balance with system upgrade, ANT+ and Bluetooth compatibility, auto-zero (automatic calibration). See Specs tab for more information.

Advice From Our Staff:

This is one of our favorite gravel power meters. From a power meter standpoint, the power2max measures power from both legs, is reliable and accurate. In addition, you get a Praxis Zayante Carbon crankset which is stiff, lightweight and performs great. It’s a wonderful combination. Just make sure you have a Praxis M30 bottom bracket on your bike as the Zayante uses a 30 mm/28 mm tapered spindle.

Options For This Power Meter

Chainrings: You can order this power meter in a 1X or 2X chainring configuration.

1x chainring sizes are: 38 | 40 | 42 | 44 | 46
2x chainring sizes are: 46/30 | 48/31

Crank arms: The Praxis Zayante Carbon crank arms come in the following crank arm lengths:

155 mm |160 mm | 165 mm | 170 mm | 172.5 mm | 175 mm

Please note – this power meter ships with a Black decal. Please let us know if you would like us to include a different color instead (Red, Blue, White, Green).

p2m Gravel NGeco Power Meter Crankset Comparison

power2max makes two similar versions of its gravel power meter crankset. The p2m Gravel Power Meter Crankset and the p2m Power Meter for GRX Chainrings. Please note, each version comes in a variety of different crank arm options, hence the range of prices and spindles, below.

	p2m Gravel Power Meter Crankset	p2m Power Meter Crankset for GRX Chainrings
Price	$660 – $1,035	$690 – $790
Spindles	24 mm, 30 mm, Praxis M30	24 mm
BCD	104	110/80
Chainline	GRX 47 mm	GRX 47 mm
Q Factor	Narrower	Standard GRX
Chainring Configuration	1x or 2x	1x or 2x
Chainring Included	Yes	No (sold separately)
Chainring	Aftermarket (power2max/ROTOR)	Shimano GRX
Chainring Sizes	38T, 40T, 42T, 44T, 46T, 46/30T, 48/31T	40T, 42T, 48/31T

Other Versions to Consider

power2max NGeco Praxis DOON: For riders who are looking for a carbon crankset that is even lighter, we recommend the power2max NGeco Praxis DOON Carbon Gravel Power Meter Crankset. This crankset features the same P2M NGeco power meter, but uses Praxis DOON carbon crank arms which are lighter than the Zayante. This power meter crankset also uses a 30 mm spindle.

Compatibility

Drivetrain:

1x chainrings: Compatible with 11- and 12-speed drivetrains (not compatible with SRAM 12-speed chains).
2x chainrings: Compatible with 9-, 10- and 11-speed drivetrains as well as with 12-speed Shimano, SRAM and KMC chains.

Bottom Bracket: This power meter fits Praxis M30 (30 mm/28 mm) bottom brackets. If you currently have a Praxis M30 MM crankset on your bike, you should be able to re-use your existing bottom bracket. However, if you are changing spindle sizes, you will need to replace your bottom bracket.

power2max NGeco Praxis Carbon Gravel Power Meter Specs

Name	NGeco Praxis Zayante Gravel Crankset
Bike Type	Gravel
Location of Power Measurement	Spider
Left or Both Legs Measured	Both
Independent Left/Right Measurement	Yes - Power Balance (available via upgrade)*
Installation	More involved (60 min. estimated)
Crank Arm Material	Carbon Fiber
Communication Protocol	ANT+ and Bluetooth SMART
Claimed Accuracy	+/- 2.0%
Active Temperature Compensation	No (however features Auto Zero)
Weight	533 grams (power meter and cranks)
Battery Type	CR2450
Battery Life	300-400 hours
Method of Cadence Measurement	Accelerometer
BCD	104 4-bolt
Spindle Size	Praxis M30 (30 mm/28 mm)
Q Factor	147 mm
Warranty	2 years

*Power Balance Upgrade

The power2max NGeco measures power from both legs right out of the box. However, with power balance, you can see how much power each leg is generating individually. If this information is important to you, you can choose to upgrade the power meter at any time. (Please note, you can also purchase the NG version of the power2max which comes with this feature unlocked, along with a rechargeable battery and a longer 5-year warranty.)

You can upgrade your NGeco using the power2max app once you receive the power meter. The cost to upgrade is 50 euros.
