power2max NG ROTOR ALDHU 30MM Gravel Power Meter CranksetMarch 8, 2023
$1,190.00 – $1,270.00
power2max’s premier NG gravel 30 mm power meter!

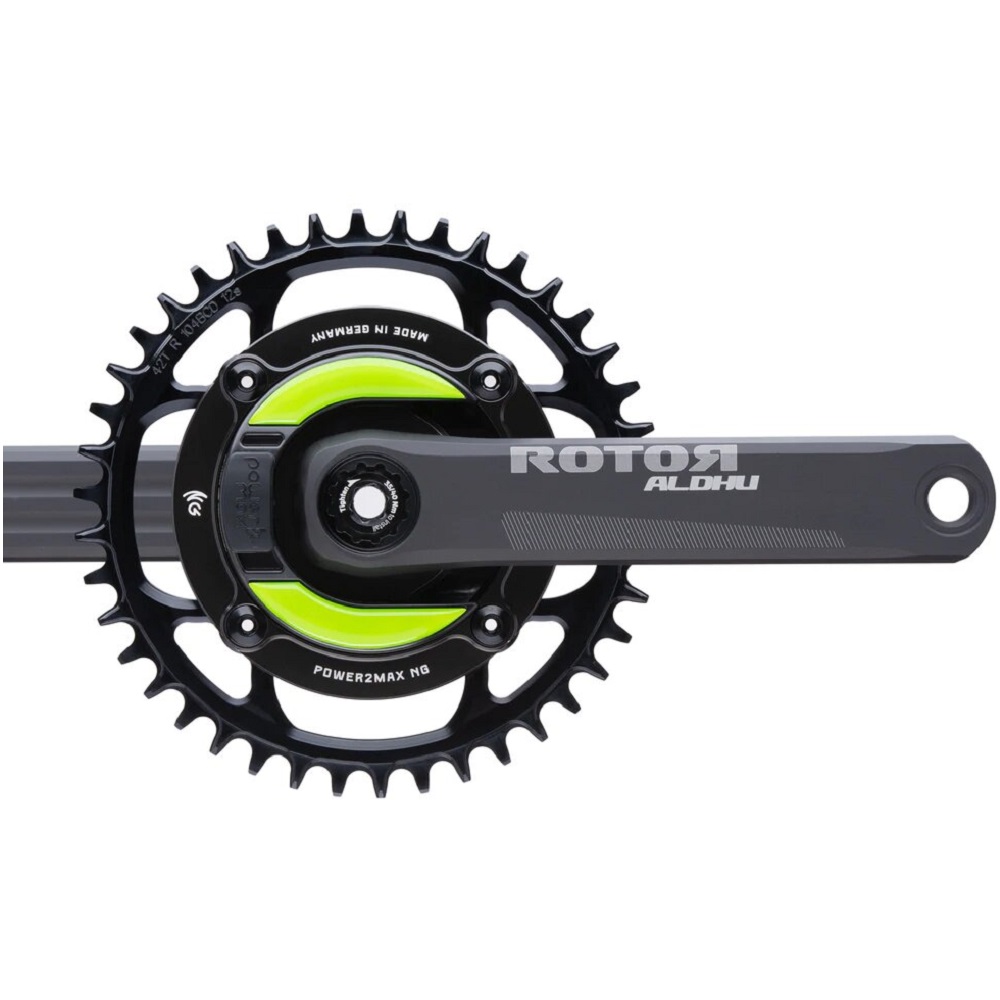

power2max NG ROTOR ALDHU 30MM Gravel Power Meter Crankset
The power2max NG ROTOR ALDHU 30MM Gravel Power Meter Crankset brings power to your gravel bike! Using GRX spacing with a narrow road Q factor, the power2max Gravel power meter allows you to run a 1x or 2x chainring based on your needs. The NG is the premier model in the power2max line-up. With features such as dual leg power measurement, ANT+/Bluetooth SMART compatibility and left/right power balance, this power2max gravel crankset comes fully-loaded.
In addition, the NG is accurate to +/- 1.0% and is easy to use with features such as auto-zero and accelerometer-based cadence measurement. The power2max NG model also features a rechargeable battery with 150 hours of run time as well as a full 5-year warranty!
Key Product Details
This power meter uses a 30 mm spindle and is therefore compatible with 30 mm bottom brackets. It comes with power2max gravel chainrings and features a GRX 47 mm chainline. The power meter gives you a narrow road Q factor vs. the slightly wider Q factor inherent in GRX cranks. See Compatibility tab for more information.
The power2max power meter measures power at the spider and is therefore able to measure power from both legs. This NG version is also able to measure your left vs. right leg power balance.
Dual-leg power measurement, accurate to +/- 1.0%, 150 hours of battery life, rechargeable battery, left/right power balance, ANT+ and Bluetooth compatibility, auto-zero (automatic calibration), 5-year warranty. See Specs tab for more information.
Advice From Our Staff:
We highly recommend power2max power meters and use them on many of our own bikes. They measure power from both legs, are accurate and very reliable. We believe the price also represents a good value for what you get.
Options For This Power Meter
Chainrings: You can order this power meter in a 1X or 2X chainring configuration.
- 1x chainring sizes are: 38 | 40 | 42 | 44 | 46
- 2x chainring sizes are: 46/30 | 48/31
Crank arms: The ROTOR ALDHU 30 mm crank arms come in the following crank arm lengths:
- 150 mm | 155 mm | 160 mm | 165 mm | 167.5 mm | 170 mm | 172.5 mm | 175 mm
Please note – this power meter ships with a Black decal. Please let us know if you would like us to include a different color instead (Red, Blue, White, Green).
Other Versions to Consider
NGeco Version: While the NG version you are viewing here features slightly better accuracy, a rechargeable battery, a longer warranty and some additional training metrics, we also sell the more affordable power2max NGeco ROTOR ALDHU 30MM Gravel Power Meter Crankset version.
24 MM Spindle Version: We also sell the power2max NG ROTOR ALDHU 24MM Gravel Power Meter Crankset which uses a 24 mm spindle for customers that are using a Shimano 24 mm bottom bracket.
Professional Assembly (Optional)
We are happy to professionally assemble your power meter crankset if you select this option when ordering. This ensures your crankset is correctly built and saves you time. Professional assembly includes:
- Mount the power meter to the cranks and tighten to factory specifications
- Apply multi-purpose bicycle grease where necessary
- Install chainrings on the power meter (if chainrings are ordered)
- Apply power2max decal
Please note – while we tighten everything to factory specs, it is still your responsibility to routinely check your power meter crankset to make sure all bolts and nuts remain securely fastened.
Drivetrain: Compatible with 11- and 12-speed drivetrains.
Bottom Bracket: This power meter fits 30 MM bottom brackets. If you currently have a 30 MM crankset on your bike, you should be able to re-use your existing bottom bracket. However, if you are changing spindle sizes, you will need to replace your bottom bracket.
power2max NG ROTOR ALDHU 30MM Gravel Crankset Specs
|Name||NG ROTOR ALDHU Gravel Crankset|
|Location of Power Measurement||Spider|
|Left or Both Legs Measured||Both|
|Independent Left/Right Measurement||Yes - Power Balance|
|Installation||More involved (60 min. estimated)|
|Crank Arm Material||Aluminum|
|Communication Protocol||ANT+ and Bluetooth SMART|
|Claimed Accuracy||+/- 1.0%|
|Active Temperature Compensation||No (however features Auto Zero)|
|Weight||585 grams (power meter and cranks)|
|Battery Life||150 hours|
|Method of Cadence Measurement||Accelerometer|
|Spindle Size||30 mm|
|Q Factor||147 mm|
In the Box
- power2max power meter
- ROTOR ALDHU crank arms
- power2max gravel chainrings
- Charging cable
- User's manual
Tools Needed for Installation
You will need the following tools for installation of this product. You can purchase many of these commonly used tools in our store.
- 10 mm Allen key
Common Questions and Answers
Question: How do I determine what length my current cranks are so I can make sure I get the same size?
- Your crank arm length should be printed or stamped on the inside of the left crank arm, usually near the pedal end.
