Yoeleo R12 Disc Brake Road Frameset
April 22, 2026Price range: $1,100.00 through $1,270.00
Yoeleo’s high-performance, aerodynamically optimized carbon road bike frameset with a competitive price point
Frameset is shown with OPTIONAL H9 Handlebar
Yoeleo R12 Disc Brake Road Frameset
The Yoeleo R12 Disc Brake Road Frameset is a high-performance, aero optimized carbon road bike frameset. It is built for road riders who want a blend of speed, stiffness and usability. The R12 offers fully internal cable routing, room for 32 mm wide tires and a modern aero profile. Yoeleo Bikes achieves this all while remaining competitively priced in the mid-to-high end of the frameset market.
Built with a new advanced ProMoldCore carbon layup process, the Yoeleo R12 prioritizes both weight savings and ride quality. This is done without cutting corners and Yoeleo Bikes tests their framesets with 100,000-cycle fatigue testing and impact testing. They are so confident in their product, they back the R12 with a 6-year warranty.
This road bike frameset features flat mount disc brake mounts and a BB386 bottom bracket shell. It can accommodate mechanical, wireless and Di2 groupsets. The Yoeleo R12 Disc Brake Road Frameset is also available with the Yoeleo H9 One Piece Handlebar for a sleek setup. Whether you’re building a race bike or a fast endurance ride, this frameset provides a solid foundation.
Product Details
Key Features of the Yoeleo Bikes R12 Disc Brake Road Frameset
- Aero Design: Aero frame shape with a streamlined downtube, seat tube, and fork lets the frame slip through the air, conserving watts.
- Wide Tire Clearance: Accepts 32 mm tire widths, matching modern trends in road tire sizes, maximizing comfort with minimal power loss.
- Stiff Yet Compliant: A combination of intelligent frame design and advanced carbon manufacturing results in a frame that gives all-day comfort without compromising stiffness for sprinting.
- Rigorous Quality Control: Extensive testing makes this frame UCI compliant, and Yoeleo back themselves with a 6-year warranty which gives peace of mind.
Yoleo Bikes Compatibility
The Yoeleo R12 is widely compatible with most modern road components. It is compatible with wheelsets that are disc brake and use 12×100 mm front and 12×142 mm rear thru axles. This frameset uses a BB386 bottom bracket shell, and uses a conventional derailleur hanger. See Compatibility tab for more information.
Considerations
The Yoeleo R12 Disc Brake Road Frameset offers impressive performance for the price, but there are a few things to keep in mind. The frameset is not as light as options from more established brands, however it performs well within its price bracket. The fully-internal cable routing is optimized for Yoeleo’s own one-piece handlebars, which means using your own barstem is not as seamless.
Advice From Our Staff
We believe the Yoeleo R12 bike frameset is ideal for riders who want an all-round, aero frame that doesn’t demand a premium price. Its stiff yet compliant design gives good power transfer without overly punishing vibrations. For someone wanting a pure climbing frame, there are lighter options. However, if you’re after versatility, aerodynamic efficiency, and a clean look, the R12 is an excellent choice.
Options For This Yoeleo Bike Frameset
Paint Scheme: Hemidium | Chuan
Size: 52 cm | 54 cm | 56 cm | 59 cm
Optional Yoeleo H9 One-Piece Handlebar: 38 cm/90 mm | 38 cm/100 mm | 38 cm/110 mm | 40 cm/90 mm | 40 cm/100 mm | 40 cm/110 mm
Compatibility
- Groupsets: This frameset is compatible with mechanical, wireless and Di2 groupsets.
- Tires: The maximum tire width for this frameset is 32 mm. Most 700 x 32c tires are 32 mm wide, but not all.
- Brake Rotors: The maximum rotor size for this frameset is 160 mm for the front and 140 mm for the rear.
- Wheelset: Compatible with 12x100 mm front and 12x142 mm rear thru axles wheelsets.
- Saddle Rail: The seatpost comes with clamps for both 7 x 7 mm standard rails and 7 x 9 mm carbon rails.
- Stem: As this frame uses fully-internal cable routing, we recommend using Yoeleo's H9 One-Piece Handlebar for seamless integration. Using your own stem or barstem on this frame is technically possible, but might have some fitment issues with the spacers.
Yoeleo R12 Frameset Specs
| Name | Yoeleo R12 Disc Brake Road Frameset |
| Bike Type | Road |
| Wheelsize | 700c |
| Frame Sizes | 52 cm | 54 cm | 56 cm | 59 cm |
| Rear Dropout | 12 x 142 mm Thru Axle |
| Fork Dropout | 12 x 100 mm Thru Axle |
| Fork Steerer | Tapered, 1 1/8" Top, 1 1/2" Crown |
| Headtube | 1-1/2” Straight |
| Seatpost Shape | D |
| Seat Rail Compatibility | Regular 7 x 7 mm, Carbon 7 x 9 mm |
| Seatpost Offset Adjustment | 0 - 25 mm |
| Frameset Material | High Modulus Toray 800 Carbon Fiber |
| Colors | Hemidium | Chuan |
| Fork + Frame Weight | 1420g (47cm) +/-50g |
| Max Tire Clearance | 700c x 32 mm |
| Max Brake Rotor Size | 160 mm Front | 140 mm Rear |
| Bottom Bracket Type | BB386 |
| Compatible Drivetrains | Mechanical | Wireless | Di2 |
| Brake Type | Flat Mount Disc |
| UCI Approved | Yes |
| Max Rider Weight | 110 KG |
| Warranty | 6 Years |
In The Box
- Yoeleo R12 Disc Brake Road Bike Frame
- Yoeleo R12 Disc Brake Road Bike Fork
- Yoeleo R12 Seatpost
- 12x100 mm front and 12x142 mm rear thru axles
- Headset Parts: Top headset bearing, bottom headset bearing, split ring, 0.5 mm & 1 mm split ring spacers, compression plug, compression plug top cap, outer cable spacer adapter 10 mm, headset bearing cover outer cable adapter, H9/H21 Handlebar spacer kit.
- Standard derailleur hanger
- Direct mount derailleur hanger
- Front Derailleur mount
- Seatpost clamp wedge assembly
- Carbon saddle rail clamp 7 x 9 mm
- Regular saddle clamp set 7 x 7 mm
- Rubber seatpost clamp cover

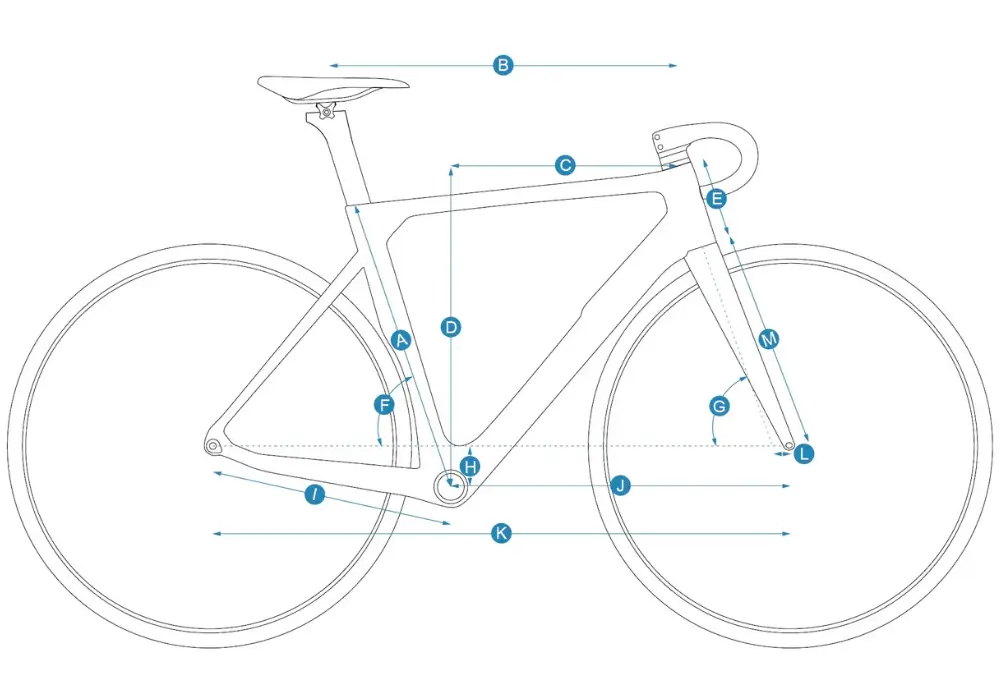

Yoeleo R12 Road Bike Frameset Geometry
| Diagram | Measurement | 52 | 54 | 56 | 59 |
| Rider Height Recommendation | 5'7" - 5'10" | 5'9" - 6'0" | 5'11" - 6'2" | 6'1" - 6'4" | |
| A | SEAT TUBE LENGTH (mm) | 490 | 510 | 530 | 560 |
| B | TOP TUBE LENGTH (mm) | 540 | 552 | 567 | 582 |
| C | REACH (mm) | 381 | 386 | 388.2 | 393 |
| D | STACK (mm) | 536.9 | 550 | 567.2 | 581.6 |
| E | HEAD TUBE LENGTH (mm) | 130 | 145.7 | 160 | 175 |
| F | SEAT TUBE ANGLE | 73.5° | 73° | 72.5° | 72.0° |
| G | HEAD TUBE ANGLE | 72.5° | 73° | 73° | 73° |
| H | BOTTOM BRACKET DROP (mm) | 72 | 72 | 72 | 72 |
| I | CHAIN STAY LENGTH (mm) | 415 | 415 | 415 | 415 |
| J | FRONT CENTER (mm) | 577.1 | 583.5 | 588.9 | 598.1 |
| K | WHEELBASE (mm) | 981.3 | 987.6 | 993.2 | 1002.4 |
| L | FORK RAKE (mm) | 43 | 43 | 43 | 43 |
Q&A
Have a question about this? Ask the staff.
OTHER CUSTOMERS ALSO VIEWED
-

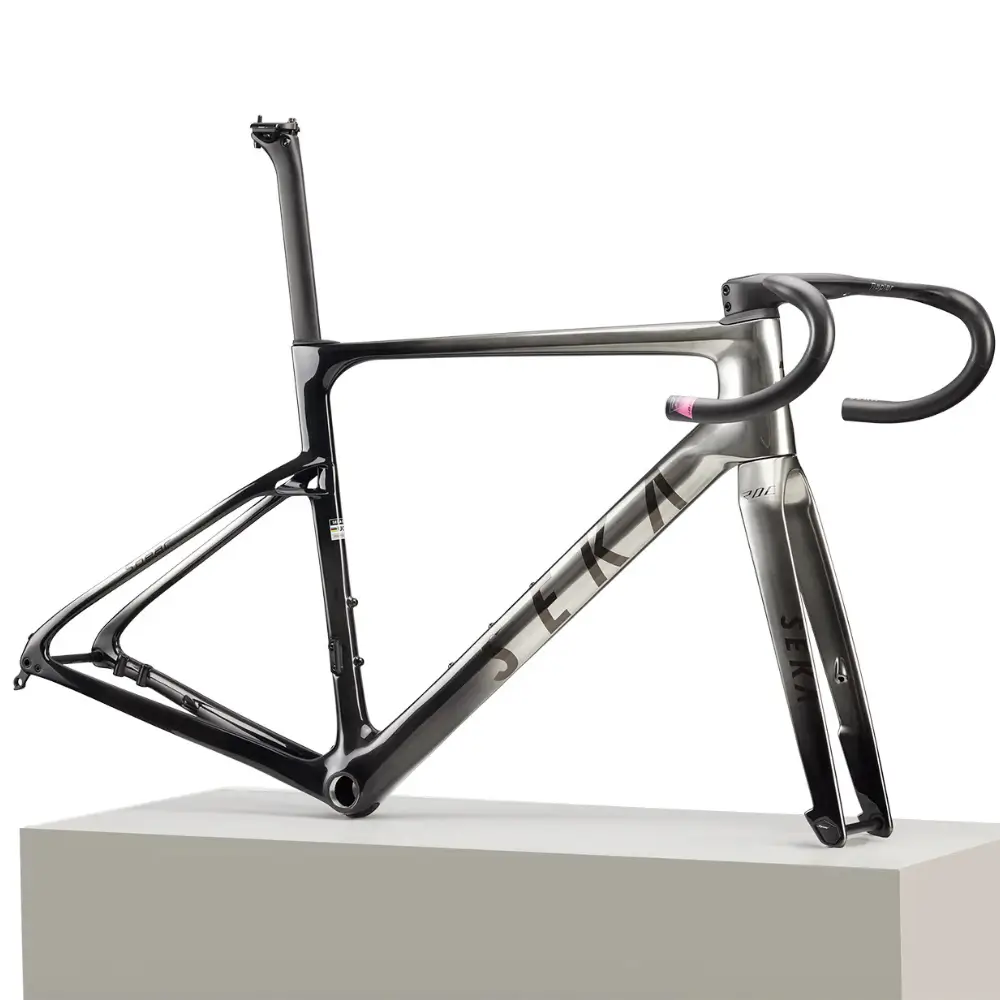

SEKA Spear RDC Disc Brake Road FramesetPrice range: $2,570.00 through $2,999.00SEKA's ultra-lightweight, wind-tunnel tested carbon road frameset Rapier Handlebar is optional, please see Handlebar section for info. MORE SIZES IN STOCK SOON! SIGN UP FOR NOTIFICATIONS BELOW. ⇒ALSO, WE HAVE… -
SEKA Spear Disc Brake Road FramesetPrice range: $2,070.00 through $2,499.00SEKA's featherlight, wind-tunnel tested carbon road frameset Rapier Handlebar is optional, please see Handlebar section for info. MORE SIZES IN STOCK SOON! SIGN UP FOR NOTIFICATIONS BELOW. ⇒ALSO, WE HAVE… -
Yoeleo Altera G21 Disc Brake Gravel FramesetPrice range: $1,100.00 through $1,270.00Yoeleo’s versatile carbon gravel bike frameset with a competitive price point
-

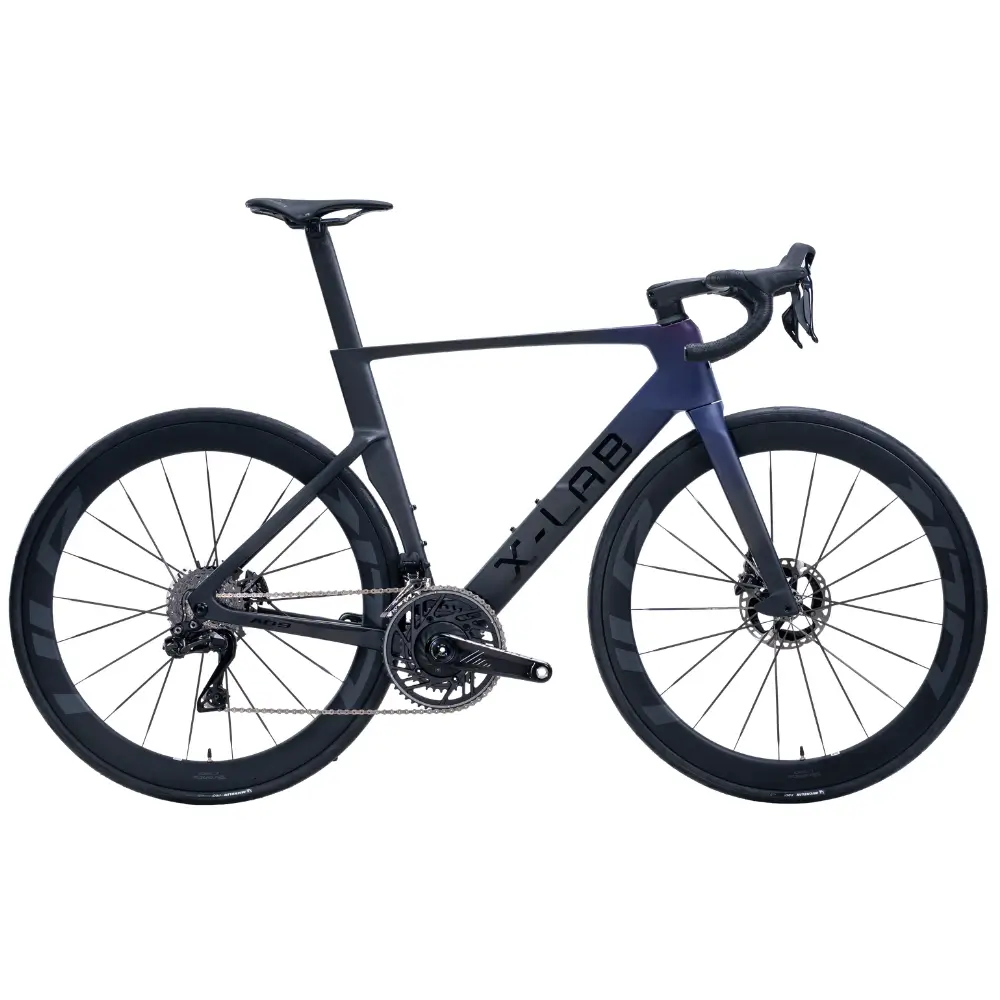

XDS X-LAB AD9 Road Bike$7,999.00The official bike of team XDS-ASTANA on the UCI World Tour!
